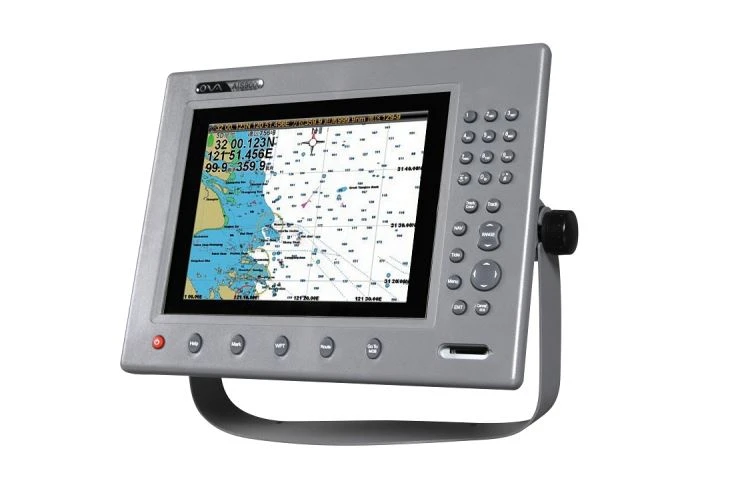

Satellite Marine AIS Navigator

Product Description Satelite marine AIS navigator is built-in map and has AIS receive and transmit function. The AIS chartplotter AIS9000-10 is 10inch for boat with strong alarm warn system. Product Parameters Supply Ability: Supply Ability:10000 Piece/Pieces per Day Packaging & Delivery...

Product Details

Product Description

Satelite marine AIS navigator is built-in map and has AIS receive and transmit function.

The AIS chartplotter AIS9000-10 is 10inch for boat with strong alarm warn system.


Product Parameters

Model

AIS9000-10

Power Supply

DC 24V (11~35V)

Power

High-performance, full isolated, PWM control of power supply

Installation

Desk or Hanging Installation

VHF Transceiver

Frequency Range

156.025 MHz~162.025 MHz

Channel Bandwidth

25KHz

Modulation

GMSK

Number of Transmitters

1

AIS Channel 1

CH 87B (161.975MHz)

AIS Channel 2

CH 88B(162.025MHz)

Tx Power Output

2 Watt(33dBm ±1.5dBm)

Rx Sensitivity

<-107 dBm @ 20% PER

Rx Message

AIS Class A & B messages

GPS Receiver(Built-in)

Receiving Channels

50 channels(Customizable GPS+Beidou)

Acquisition Time

Cold Start: 45s  Hot Start: 15s

Accuracy

<15m (95%)

LED INDICATION

Power(Red)

System Power on/off

Error(Yellow)

Receiving or transmitting error

TX(Red)

Transmitting AIS Data

RX1(Green)

Receiving AIS channel 1 data

RX2(Green)

Receiving AIS channel 2 data

GPS(Green)

Receiving GPS data

Interface

GPS Antenna Connector

BNC

VHF Antenna Connector

NS-KYA3

NMEA0183(RS-422)

1(38400bps)

Environment

Input/Output

-15°C~55°C(+5°F~+130°F)

Waterproof

IP44

Applicable Standards

IEC 62287-1 Ed.2, 2010       IEC 61108-1 Ed.1, 2003       IEC 61162-1 Ed. 3, 2007

IEC 60945 Ed. 4, 2002        IEC 61162-2 Ed. 1, 1998       ITU-R M.1371-4, 2010



Supply Ability:

Supply Ability:10000 Piece/Pieces per Day


Packaging & Delivery
Packaging Detailssize of carton:435*275*150mm
weight: 4.3kg
packed:cartonPortSHANGHAI/NANTONGLead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(day) 5 To be negotiated


Our Service


Technical Support

Our company has three senior technicians and twelve professionals with high technological level, abundant specialized research practice experience and strong developing abilities. Meanwhile, our company has cooperated with some institutes of higher education and science & technology institutes to ensure the sustaining development of scientific research and development work.
