Product Introduction
Boats ships equipment gps ais transponder for marine
Product Introduction
Class B gps ais transponder allows recreational sail and power vessels, offshore racers, smaller commercial vessels, workboats and fishing vessels to increase their visibility even in extreme weather conditions or high-traffic environments and top generate a safety distress message to surrounding AIS equipment.
Product Feature
· Convenient AIS parameter setting and operation mode
· Can be connected to Saiyang chart plotter, radar and other equipment
· Wide voltage, anti-reverse connection, isolated power supply design
Product details

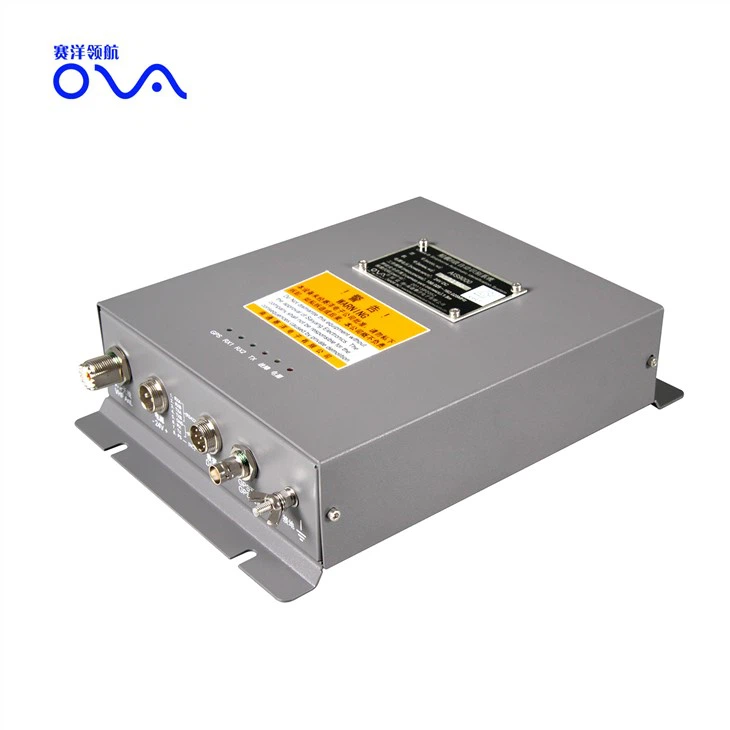

The gps ais transponder is waterproof, impact and temperature resistant, making it ideal for surviving the harsh marine environment.
Customizable wifi, bluetooth, network interface, easy integration of chartplotters using its NMEA0183 and waterproof USB ports.
Technical parameters：
|
Model |
AIS9000 Transponder |
|
Power Supply |
DC 24V (11~35V) |
|
Power |
High-performance, full isolated, PWM control of power supply |
|

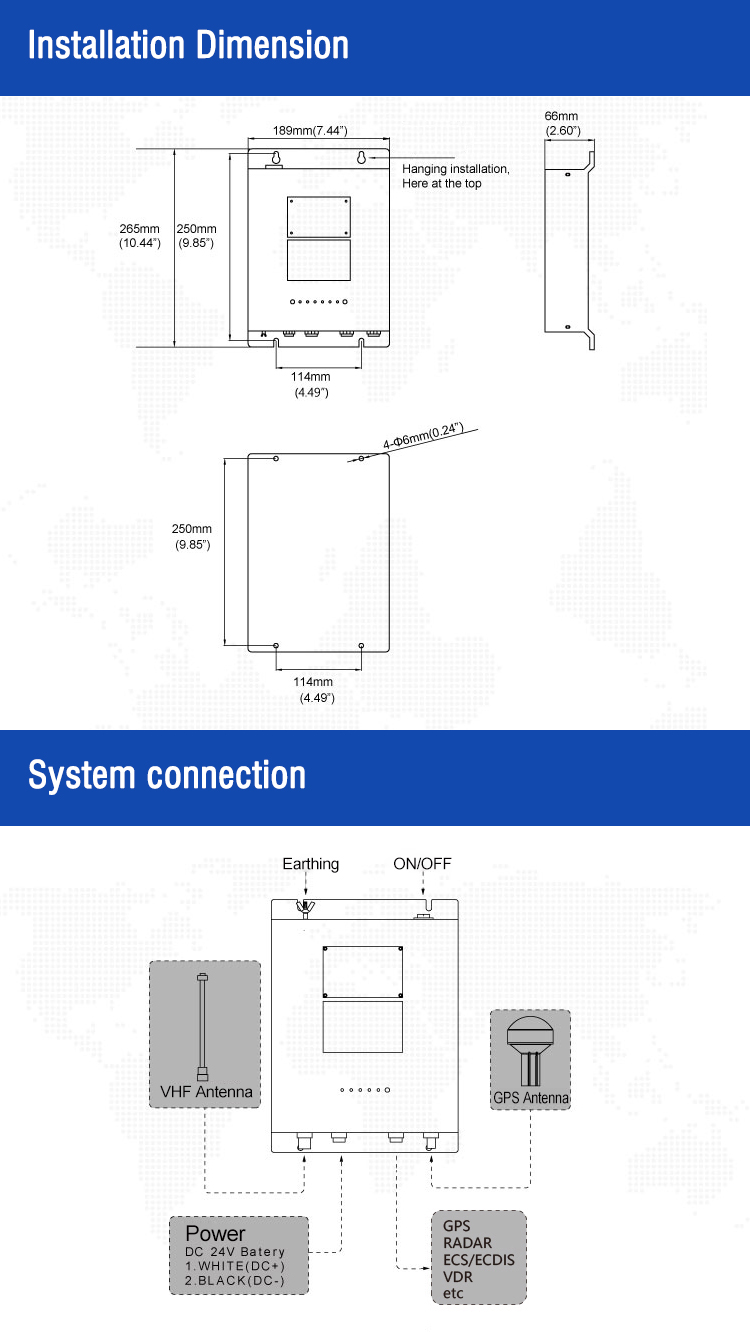

Installation |
Desk or Hanging Installation |
|
VHF Transceiver |
|
|
Frequency Range |
156.025 MHz ~ 162.025 MHz |
|
Channel Bandwidth |
25KHz |
|
Modulation |
GMSK |
|
Number of Transmitters |
1 |
|
AIS Channel 1 |
CH 87B(161.975 MHz) |
|
AIS Channel 2 |
CH 88B(162.025 MHz) |
|
Tx Power Output |
2 Watt (33 dBm ± 1.5 dB) |
|
Rx Sensitivity |
< -107 dBm @ 20% PER |
|
Rx Message |
AIS Class A & B messages |
|
GPS Receiver(Built-in) |
|
|
Receiving Channels |
50 channels(Customizable GPS+Beidou) |
|
Acquisition Time |
Cold start：45s,Hot start：15s |
|
Accuracy |
<15m(95%) |
|
LED Indication |
|
|
Power(Red) |
System power on/off |
|
Error(Yellow) |
Receiving or transmitting error |
|
TX(Red) |
Transmitting AIS data |
|
RX1(Green) |
Receiving AIS channel 1 data |
|
RX2(Green) |
Receiving AIS channel 2 data |
|
GPS(Green) |
Receiving GPS data |
|
Interface |
|
|
GPS Antenna Connector |
BNC |
|
VHF Antenna Connector |
NS-KYA3 |
|
NMEA0183(RS-422) |
1(38400bps) |
|
Environment |
|
|
工Temperature |
-15°C ~ +55°C (+5°F ~ +130°F) |
|
Protection Level |
IP44 |
|
Applicable Standards |
IEC 62287-1 ED.22010 IEC 61108-1 ED.12003 IEC61162-1 ED.32007 IEC 60945 ED.42002 IEC61162-2 ED.11998 ITU-RM.1371-42010 |
