Class B Ais Transceiver

Class B Ais Transceiver

The AIS9000-N2 is a class B AIS transceiver allowing you to transmit your data to other AIS equipped vessels, and receive their data. Effectively reduce the risk of surface collision As a two-way AIS signal receiver and receiver, AIS9000-N2 not only sends the navigation information and data of...

Product Introduction

The AIS9000-N2 is a class B AIS transceiver allowing you to transmit your data to other AIS equipped vessels, and receive their data.





Effectively reduce the risk of surface collision

As a two-way AIS signal receiver and receiver, AIS9000-N2 not only sends the navigation information and data of the ship to the outside, but also receives the ship data of the surrounding area. This information can effectively help users improve their understanding of the current surface environment and enhance their awareness of potential collision risks.



Equipped with an independent GPS signal receiver and external antenna interface, it supports the NMEA2000 communication protocol and can be seamlessly integrated with compatible navigation equipment on board.





  • The AIS9000-N2 ensures that you are seen and can see on the water by sending a signal to other vessels with your navigational data, whilst you receive data from other vessels. This allows you to plan any necessary avoidance manoeuvres well in advance;
  • Multiple Networking Connections

Compatible with NMEA 2000, NMEA 0183;

  • Built-in high-sensitivity GNSS receiver board with accurate positioning, adopting advanced and independent R&D technology of high stable speed and course;
  • Strong and compact shape design, compact size, easy to install and fix;
  • Flexible integration with various AIS compatible radar and chart plotters;
  • Fully satisfies the technical standards for Class-B AIS,IEC 62287-1.

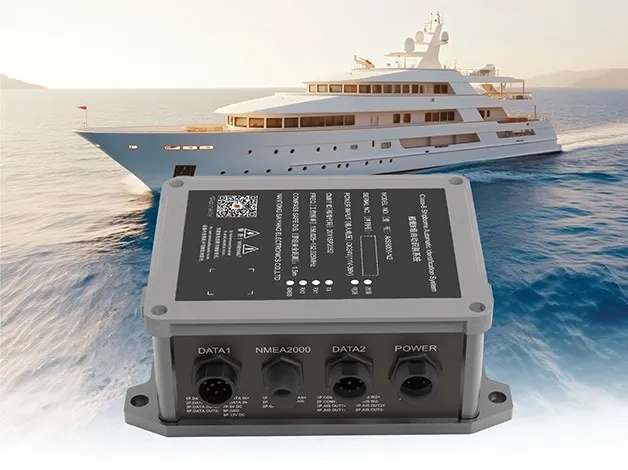

NMEA 2000 Class B AIS Transceiver
AIS9000-N2 Class B AIS Transceiver: User Problem Solving Description

Skippers of small and medium-sized vessels often encounter persistent navigation troubles: restricted on-water situational awareness, no way to broadcast vessel real-time status to nearby water traffic, slow response to approaching vessel hazards, and frequent compatibility obstacles when connecting marine electronics. The AIS9000-N2 Class B AIS Transceiver solves these common onboard pain points, delivering reliable full-range water scenario awareness and flexible device connectivity to support all your marine voyages.

Vessel blind spots and insufficient mutual visibility are leading causes of maritime collisions, particularly in busy waterways or poor visibility weather. Breaking the limits of traditional single-side monitoring devices, the AIS9000-N2 supports real-time bidirectional AIS data interaction. It actively broadcasts your vessel's navigational data to all nearby AIS-equipped vessels to guarantee your on-water visibility, while continuously receiving real-time positioning, speed and course data from surrounding boats. This enables early risk identification, allowing you to carry out steady, precise avoidance maneuvers and avoid risky last-minute emergency operations.

Most entry-level AIS devices suffer from unstable positioning output and fluctuating speed or course data, which can easily trigger navigation misjudgments and hidden safety risks. The AIS9000-N2 completely resolves this issue. Fitted with a high-sensitivity integrated GNSS receiver and adopting independently developed high-stability speed and course tracking technology, it outputs accurate, consistent positioning and navigational data even in complex and harsh marine environments. It effectively eliminates data drift and instability, delivering dependable positioning performance to fully secure every voyage.

Onboard equipment upgrades and refits often come with annoying compatibility and connection issues between different navigation devices. Designed with excellent universal adaptability, this transceiver supports two mainstream marine protocols, NMEA 2000 and NMEA 0183. It achieves seamless matching with most market-available AIS-compatible radars and chart plotters, requiring no additional adapters or complex configuration. It unifies fragmented onboard navigation devices into an integrated system, greatly simplifying installation and enabling smooth, synchronized navigational data transmission.

Boasting a sleek, professional and practical exterior design, the AIS9000-N2 features a compact body structure that fits perfectly into various vessel cockpits without wasting limited onboard space, while offering robust marine-grade durability for long-term maritime use. Fully compliant with the IEC 62287-1 Class B AIS official technical standards, it maintains stable and standardized operational performance for both recreational sailing and commercial daily voyages. From proactive collision prevention and high-precision positioning to effortless equipment integration, it fully fulfills user core needs for safer, simpler and more intelligent marine navigation.







Model

AIS9000 Transponder

Power Supply

DC 24V (11~36V)

Power

High-performance, full isolated, PWM control of power supply

Installation

Desk Installation

VHF Transceiver



Frequency Range

156.025 MHz ~ 162.025 MHz

Channel Bandwidth

25KHz

Modulation

GMSK

Number of Transmitters

1

AIS Channel 1

CH 87B(161.975 MHz)

AIS Channel 2

CH 88B(162.025 MHz)

Tx Power Output

2 Watt (33 dBm ± 1.5 dB)

Rx Sensitivity

< -107 dBm @ 20% PER

Rx Message

1-24 messages

Built-in GNSS receiver (Customisable single GPS, single BDS, GPS+BDS)

Receiving Channels

50 channels

Acquisition Time

Cold start:45s,Hot start:15s

Accuracy

<15m(95%)

LED Indication



Power(Red)

System power on/off

Error(Yellow)

Receiving or transmitting error

TX(Green)

Transmitting AIS data

RX1(Green)

Receiving AIS channel 1 data

RX2(Green)

Receiving AIS channel 2 data

GNSS(Green)

Receiving GNSS data

Interface



GNSS Antenna Connector

SMA

VHF Antenna Connector

NS-KYA3

NMEA0183

4 outputs (default 38400, other baud rates can be customised)
NMEA2000 1

Environment



Temperature

-15°C ~ +55°C (+5°F ~ +130°F)

Protection Level

IP67

Applicable Standards

IEC 62287-1 2022

IEC 61108-1 Ed. 1, 2003

IEC 61162-1 2016

IEC 61162-3 2014

IEC 60945 Ed. 4, 2002

IEC 61162-2 1998

NMEA2000 Ver3.0

ITU-R M.1371-5, 2014
