Ais Transponder Class B
AIS9000 marine electronics ais transponder class b 1.Product Introduction of the ais transponder class b AIS9000 is made up of a TDMA transmitter, two TDMA/DSC receivers, a AIS processor, a CPU, a internal GPS receiver, power module and interface circuits, etc. AIS9000 can work independently on...
Product Introduction

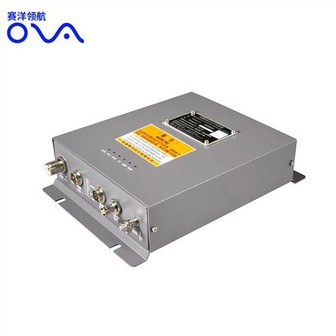

AIS9000 marine electronics ais transponder class b
Product Introduction
AIS9000 is made up of a TDMA transmitter, two TDMA/DSC receivers, a AIS processor, a CPU, a internal GPS receiver, power module and interface circuits, etc.
AIS9000 can work independently on two channels, set zero by receiving message 22 and work by transferring to other water channels.
Working channel
The Class B AIS transponder's two channels can work between Frequency 156.025MHz~162.025MHz water channels. The device's default working channels are Channel 2087 and Channel 2088. When the base station shift to the other working frequency that is out of the above working frequency channels or 25KHz bandwidth by remote control command, the device will convert to only accepted status.
AIS9000 is a class b AIS transponder can customizable wifi, bluetooth, network interface.
It comes with a GPS antenna.
The ais transponder class b features NMEA 0183 connectivity for easy integration with compatible chartplotters and multifunction displays. And it's all packed into an easy-to-install box unit with a small footprint.
Product Feature And Application
-
Built-in GPS with connector for optional external antenna
-
2 watts of transmit power
-
Easy-to-use, reliable communication transmits your vessel information to other AIS receivers in your area while receiving AIS target data.
Product details
Technical parameters：
|
Model |
AIS9000 Transponder |
|
Power Supply |
DC 24V (11~35V) |
|
Power |
High-performance, full isolated, PWM control of power supply |
|
Installation |
Desk or Hanging Installation |
|
VHF Transceiver |
|
|
Frequency Range |
156.025 MHz ~ 162.025 MHz |
|
Channel Bandwidth |
25KHz |
|
Modulation |
GMSK |
|
Number of Transmitters |
1 |
|
AIS Channel 1 |
CH 87B(161.975 MHz) |
|
AIS Channel 2 |
CH 88B(162.025 MHz) |
|
Tx Power Output |
2 Watt (33 dBm ± 1.5 dB) |
|
Rx Sensitivity |
< -107 dBm @ 20% PER |
|
Rx Message |
AIS Class A & B messages |
|
GPS Receiver(Built-in) |
|
|
Receiving Channels |
50 channels(Customizable GPS+Beidou) |
|
Acquisition Time |
Cold start：45s,Hot start：15s |
|
Accuracy |
<15m(95%) |
|
LED Indication |
|
|
Power(Red) |
System power on/off |
|
Error(Yellow) |
Receiving or transmitting error |
|
TX(Red) |
Transmitting AIS data |
|
RX1(Green) |
Receiving AIS channel 1 data |
|
RX2(Green) |
Receiving AIS channel 2 data |
|
GPS(Green) |
Receiving GPS data |
|
Interface |
|
|
GPS Antenna Connector |
BNC |
|
VHF Antenna Connector |
NS-KYA3 |
|
NMEA0183(RS-422) |
1(38400bps) |
|
Environment |
|
|
工Temperature |
-15°C ~ +55°C (+5°F ~ +130°F) |
|
Protection Level |
IP44 |
|
Applicable Standards |
IEC 62287-1 ED.22010 IEC 61108-1 ED.12003 IEC61162-1 ED.32007 IEC 60945 ED.42002 IEC61162-2 ED.11998 ITU-RM.1371-42010 |
