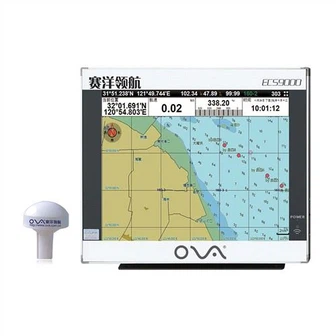

High-sensitivity 19-inch color TFT display GPS Chartplotter For Marine

Product Description of the GPS Chartplotter For Marine

Marine GPS plotter AIS9000-L190 detailed satellite image maps, electronic chart, AIS target information and AIS group management, strong alarm warning system, can be connected with radar, sonar, compass and other different kinds of sensors for multi-image display.

Product Specification of the GPS Chartplotter For Marine

•Voltage: DC 24V(11-35V)

•Power Consumption: ≤20W

•Bandwidth: 25KHz

•Frequency:161.975~162.025MHz

•Mount:Bracket Mount or Flush Mount

•Power: High-performance, full isolated, PWM control

•User Data: 50000 waypoints, 200 routes, 10000 waypoints per route. 20000 tracks, 500 tracks per AIS.

•Language:Simple Chinese, Traditional Chinese, English(Can be customized)

•Navigation Data: Bearing, Present Distance, Distance to the Destination, Yaw Distance, Yaw Angle, Navigation Arrow, Sailing Time, ETA(Estimated Time of Arrival), Navigation Distance, Average Speed, Maximum Speed, Target Fishing Zone, etc.

•GPS Performance:Adopting advanced technology of high stable navigational speed and course

•Own Ship Data: Position, speed, course, heading, altitude, present fishing zone, GPS positioning mode

Model	AIS9000-L190
Display Size	19"
Resolution	1024x768
ExternalDimension	442mmx362mmx100mm
Display Mode	TFT LCD COLOR Display
Operating Mode	Infrared remote control
Language	Simple Chinese, English, Traditional Chinese
Voltage Range	11~35V DC
Power	High performance, full isolated PWM control of power supply
Power Dissipation	≤30W
Safe Distance of Compass	≥1.5m
AIS Function	TX Channel	1 ch
	RX Channel	2 ch
	RF Out Power	2W
	Receive Frequency	156.025~162.025MHz
	Default Channel	CH2087,CH2088
	Bandwidth	25KHz
	Modulation Mode	GMSK
	Receive Sensitivity	Superior to-107dBm
	TX Channel	87B/161.975MHz
	RX Channel	88B/162.025MHz
GPS Receiver	Adopt high speed stable technology
	GPS positioning accuracy:≤15m, 95% accuracy
	Positioning time:cold start 45s, warm start 15s
Navigation Performance	Waypoints:6000 points
	Marks:5000 points
	Route:200 routes,each route contains 48 waypoints
	Track:≥200 routes
	Include the tide and compass
	Intelligent collision avoidance
Interface	1.GPS output:RS-422, NMEA0183, 4800bps
	2.AIS input & output:RS-422, NMEA0183, 38400bps
	3.Sonar input & output:RS-422, NMEA0183, 115200bps
	4.GPS Antenna Interface:BNC base, impedence 50Ω
	5.VHF Antenna Interface:UHF base, impedence 50Ω
	6.Powerinterface: 24V DC(11~35V DC)
Environment	Temperature	-15℃~50℃
	Protection Level	IP44
Standard Annex	1. GPS Antenna
	2. Power Line
	3. Safety Fuse, Locking Screws
	4. Manual, Certificate, Warranty Card

Packing&Shipping

Delivery Time	2~5days: DHL,FedEx,UPS,etc.   5 ~10days: EMS,Airport cargo   10 ~60days: Sea cargo
Payment Terms	T/T, western union, paypal, alipay,   irrevocable LC at sight
Packaging	gift box + strong protection carton boxes   suitable for long term delivery
Shipping	DHL, UPS, FEDEX, TNT, EMS, by air, by sea,   China post, any way you think is suitable
