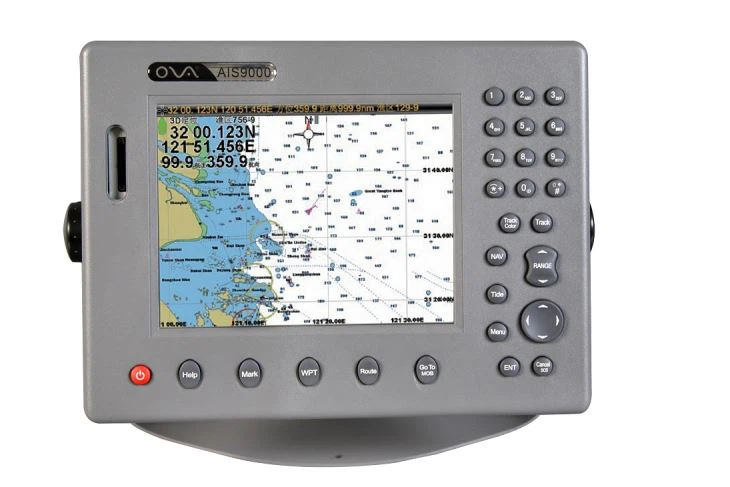

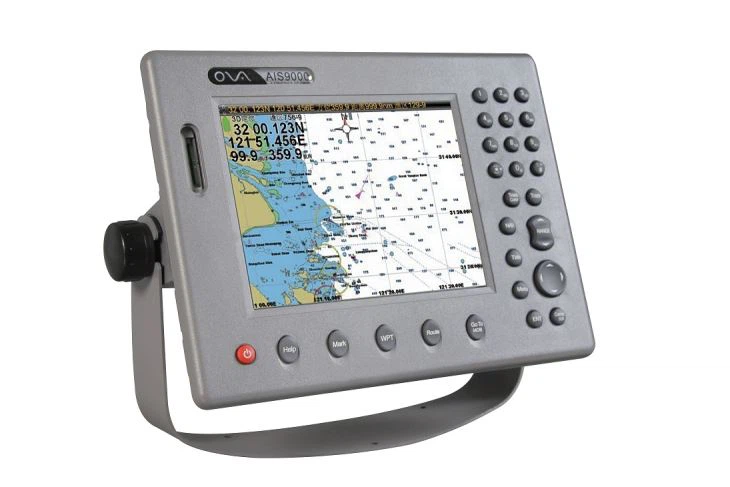

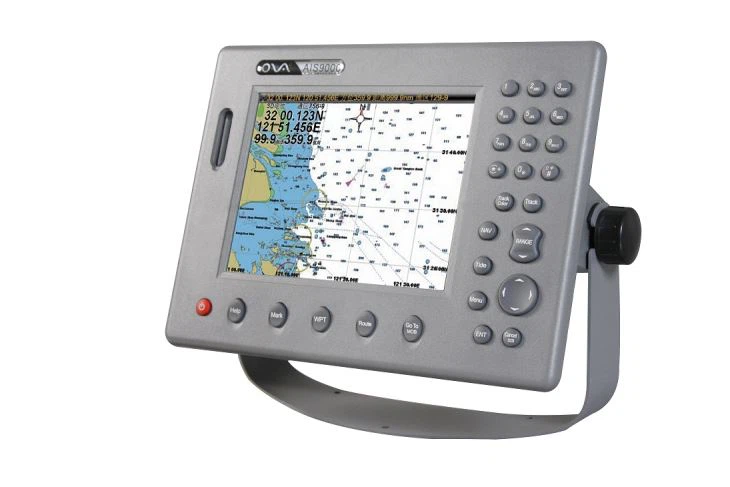

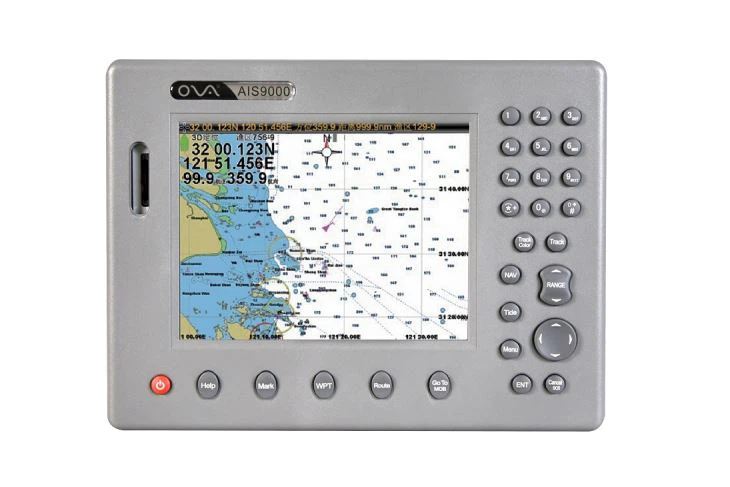

Multifuction AIS Chartplotter

Product Description Multifuction AIS chartplotter 8 inch is supplied by Saiyang. Under the GPS positioning function,you can see the navigation trajectory,own ship position and port of destination. Product Function ●Powerful and advanced technology ●Flexible and convenient operations ●External...

Product Details

Product Description

Multifuction AIS chartplotter 8 inch is supplied by Saiyang.

Under the GPS positioning function,you can see the navigation trajectory,own ship position and port of destination.


Product Function

●Powerful and advanced technology

●Flexible and convenient operations

●External and quick update

●Certified with authoritativa quality system

●Industrial and high quality material

●Exquisite apperance,convenient and practial


Product Specification


Model

AIS9000-08

Power Supply

DC 24V (11~35V)

Power

High-performance, full isolated, PWM control of power supply

Installation

Bracket or Embedded

Display Unit

Frequency Range

156.025 MHz~162.025 MHz

Channel Bandwidth

25KHz

Modulation

GMSK

Number of Transmitters

1

AIS Channel 1

CH 87B (161.975MHz)

AIS Channel 2

CH 88B(162.025MHz)

Tx Power Output

2 Watt(33dBm ±1.5dBm)

Rx Sensitivity

<-107 dBm @ 20% PER

Rx Message

AIS Class A & B messages

GPS Receiver(Built-in)

Receiving Channels

50 channels(Customizable GPS+Beidou)

Acquisition Time

Cold Start: 45s  Hot Start: 15s

Accuracy

<15m (95%)

LED INDICATION

Power(Red)

System Power on/off

Error(Yellow)

Receiving or transmitting error

TX(Red)

Transmitting AIS Data

RX1(Green)

Receiving AIS channel 1 data

RX2(Green)

Receiving AIS channel 2 data

GPS(Green)

Receiving GPS data

Interface

GPS Antenna Connector

BNC

VHF Antenna Connector

NS-KYA3

NMEA0183(RS-422)

1(38400bps)

Environment

Input/Output

-15°C~55°C(+5°F~+130°F)

Waterproof

IP44

Applicable Standards

IEC 62287-1 Ed.2, 2010       IEC 61108-1 Ed.1, 2003       IEC 61162-1 Ed. 3, 2007

IEC 60945 Ed. 4, 2002        IEC 61162-2 Ed. 1, 1998       ITU-R M.1371-4, 2010












Our Service


Technical Support

Our company has three senior technicians and twelve professionals with high technological level, abundant specialized research practice experience and strong developing abilities. Meanwhile, our company has cooperated with some institutes of higher education and science & technology institutes to ensure the sustaining development of scientific research and development work.




FAQ

Q: Where is your company located? How can I visit it?
A: Our company is located in Nantong, which is about two hours from Shanghai and half an hour by car from Nantong Airport.


Q: How can I get the sample?
A: Samples could be sent within 3-5 days if there is in stock. Generally, sample is not free.

Q: What's the lead time?
A:If we have stocks of the item you need, we can send goods to you within 3-5 working days after 100% payment into our bank account. If we don’t have enough stocks, different products will take different days. Generally, it need around 30-35 days.

Q: How does your factory control product quality?
A: ISO9001 Certificated, independent quality control team with inspectors in our factory.

Q: What is your Minimum Order Quantity?
A: We sell you at least 10pcs for each item in normal order, but we also accept the sample order.

Q: What’s about shipping?
A: Small order can be shipped by air and large quantities can be shipped by sea, no matter your assigned agent or ours, Our best advantage is that we’re located in Nantong that is close to Shanghai and Nantong Port.


Q: What’s your agency/distributor policy?
A: We have too many different policies according to target markets, so please send email for detailed discussion or talk face to face.
