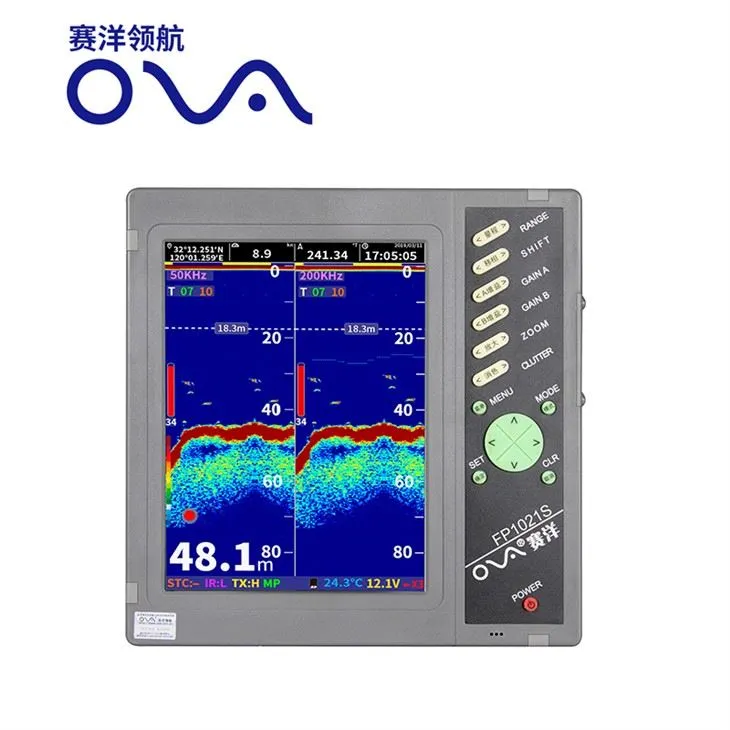

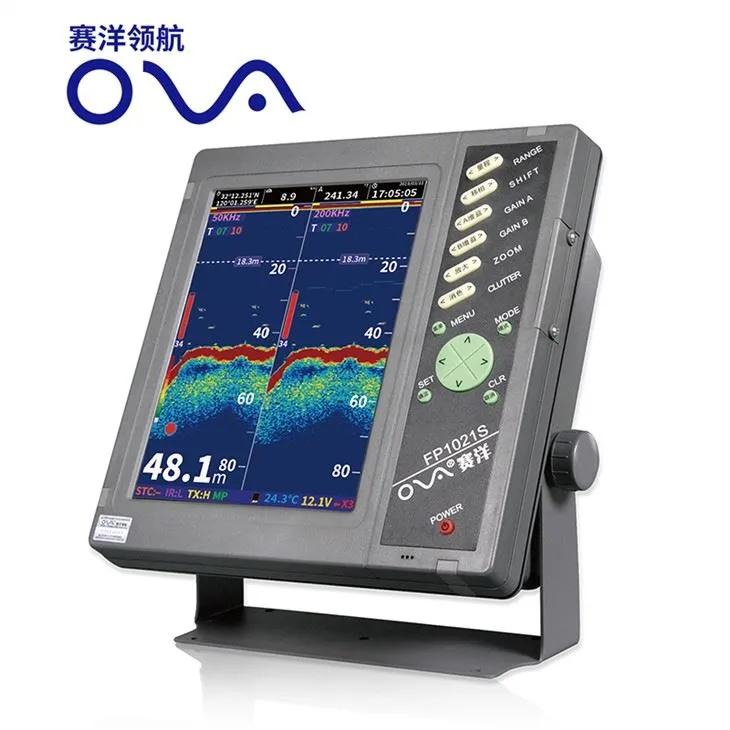

OVA 10-inch Color LCD fish finder for boat to meet the demands from pleasure to fishery.1.Product Introduction of the fish finder for boat The 10inch marine fish finder FS1001B is a high power fish finder supplied by Nantong OVA. Electronic fish finder with high performance, full isolated and PWM control of power supply.

Send Inquiry

Product Introduction

OVA 10-inch Color LCD fish finder for boat to meet the demands from pleasure to fishery.

1.Product Introduction of the fish finder for boat

The 10inch marine fish finder FS1001B is a high power fish finder supplied by Nantong OVA.

Electronic fish finder with high performance, full isolated and PWM control of power supply.

2.Product Parameter(Specification)of the fish finder for boat

Model	FS1001B
Display Size	10" Color TFT LCD
Resolution	800x600
Processing	Digital Signal Processing(DSP)
External Dimension	285mmx285mmx128.5mm
Language	Chinese, English, Korean, Vietnamese
Voltage Range	12~36V DC
Frequency	50&200KHz dual frequency
Output Transmit Power	1000~1500W
Emission Rate	3600 times/minute on top
Pulse Length	0.12~3.0ms
Measuring Accuracy	0.1m
Sensitivity	7 dBμV
Depth Range	0~2000m
Auto Range	OFF/ON
Auto Gain	OFF/L/M/H
A-Mode	OFF/ON
Fish School Alarm	OFF/Small/Large
Temperature Alarm	OFF/In Range/ Out Range (Optional with temperature sensing transducer)
Depth Alarm	OFF/In Range/ Out Range
Voltage Alarm	OFF/ON
Expansion Mode	OFF/Auto/Manual/Bottom Lock
Expansion Rate	X2, X4, X8, XR(Actual Resolution)
Amplify Mode/Zoom Mode	OFF/Bottom Lock/Auto/Manual
Picture Advance Speed	7 steps(stop, 1/8, 1/4, 1/2, x1, x2, x3)
Background Color	4 kinds
Color Assortment	7 kinds
Depth Unit	Meter(m), Feet(ft), Fathom(fa)
Scale Line	OFF/ON
Clutter	Yes
STC	OFF/L/M/H
TX Power	OFF/L/M/H
SD Card	Storage and replay function, software update
Interface	NMEA0183 Input: GPS Information(GGA, RMC, VTG)
	NMEA0183 Output:Depth Data(DPT,DBT)
	Water Temperature Interface:x1
	Transducer Interface:x3
	Power Interface:DC 24V
Environment	Temperature:-10℃~40℃

3.Product Feature And Application of the fish finder for boat

Feature:

▶ Advanced DSP high image supersonic digital processing technology provides both higher resolution in shallow areas and high gain in deep areas.

▶ Easy Operation

•Easy access to all system functions with backlit keypad, programmable function keys and comprehensive menus.

▶ Dual frequency

Two frequencies can be selected depending on your preferred combination.

▶ High power

Optimized for deep water with 1kw to 1.5kw output power.

▶ Sunlight Viewable

Brilliant 10” color LCD display with 8, 16, or 64 color levels for excellent readability in direct sunlight.

▶ Easy Installation

Built-in overhead and flush mounting for easy installation.

▶ Easy and quick gain setting control

•When gain changes are applied, the previous echoes are applied at the same as the new echoes

•Allows to display weakly recorded fish group

4.Client Feedback of the fish finder for boat

best fish finders 2020

best cheap fish finder

best sonar fish finder

fish finder device

5.Screen Image of the fish and depth finder

reading-fish-finder-04

reading-fish-finder

Reading the display of fish and depth finder

Information has to be read from the right side to the left side

The far right side of the display screen shows more recent images

Darker colors mean there is a stronger echo being emitted

Thick lines are a sign of harder structure underneath the boat

6.Optional Transducers of the fish finder for boat

7.Product Qualification Of the fish finder depth finder

The company has a 2800-square-meter marine navigation product manufacturing center, which integrates trial production, testing, manufacturing, and storage. It is fully equipped with complete functions.

With a complete quality control system, we strictly control every process to ensure the high-quality products to meet customers’ demands.

Products have passed ISO9001 quality system and CE certification.

8.Deliver,Shipping And Serving of the fish finder for boat
