8 Inch 600W 200kHz Digital Echo Sounder – CCS Approved for Marine Navigation



Product Description

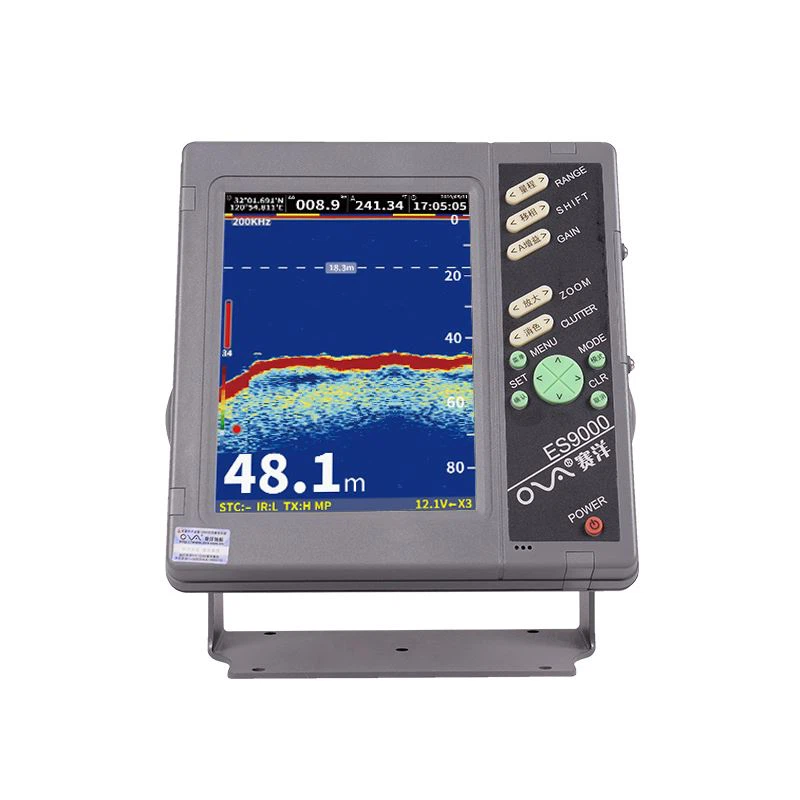

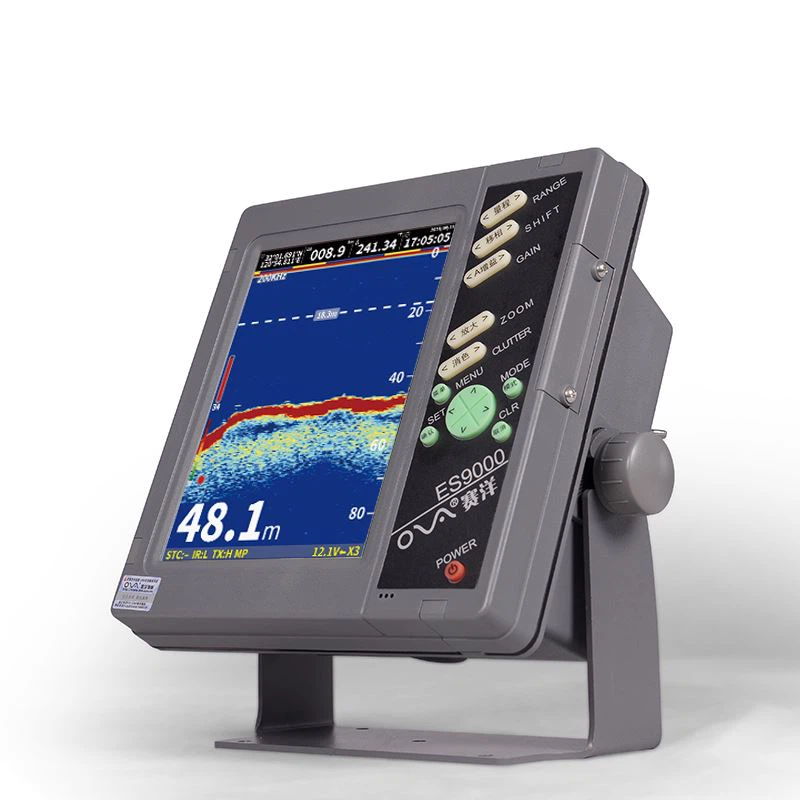

SAIYANG's 8-inch 600W 200kHz Digital Echo Sounder is a CCS-approved marine navigation instrument designed for both inland waterway and international maritime navigation. Engineered by Saiyang Electronics Co., Ltd. (ISO9001 certified), this digital depth finder delivers accurate, real-time underwater topography data to enhance situational awareness and voyage safety.

Built with a high-performance digital signal processor and a professional-grade 200kHz transducer, this echo sounder equipment ensures stable performance in various water conditions – from shallow rivers to deep sea.



Product Feature

✅ CCS Type Approved & ISO9001 Certified

Complies with CCS (China Classification Society) standards for ship navigation equipment.

Manufactured under ISO9001 quality management system.

✅ 8-Inch High-Contrast Color TFT LCD

800x600 pixel resolution.

Wide viewing angle & adjustable brightness for day/night operation.

8 color schemes adapt to different light environments.

✅ 600W Output & 200kHz Frequency

Provides strong penetration and clear echo returns.

Ideal for shallow water detail and medium-depth sounding.

✅ Smart Shallow/Deep Water Alarm

User-configurable depth alarm for safe anchoring and grounding prevention.

Alerts operator at any preset shallow or deep water depth.

✅ Advanced TVG & Gain Control

Optimized TVG (Time Variable Gain) curve compensates for sonar transmission attenuation.

High-sensitivity gain adjustment for distinct echo detection.

✅ NMEA0183 Connectivity

Seamlessly connects to onboard GPS, radar, autopilot, and other NMEA0183-compatible devices.

Shares depth data for integrated navigation solutions.

✅ Dual-Language Interface

Supports both Chinese and English operation.

Easy switching between languages for international crews.





Echo sounder equipmentr with a 10 inch, high resolution graphic LCD, continuously shows echo graphics on the LCD along with complete navigational details.

Why Choose SAIYANG?

Factory Direct – Competitive wholesale pricing without quality compromise.

Certified Quality – Full CCS and ISO9001 compliance.

Global Experience – Used by ship owners and shipyards worldwide.

OEM/ODM Support – Customizable labeling and packaging options.

Technical parameters：

Model	ES9000-P822S/P811S
Power Supply	DC 24V (11~35V)
Output Power	300～600W
Frequency	200KHz,200&200KHz,50&200KHz
Display
Type	8"
Resolution	800×600px
Language	Simplified Chinese, English, Traditional Chinese
Expansion Mode	Auto/Manual/Bottom Lock
Background Color	Black, blue
Echo Color	3 color schemes, each scheme has 4 color schemes
Sweep Speed	7steps(Stop,1/8,1/4,1/2,×1,×2,×3)
Characteristics
Accuracy	±1%
Lowest Blind	0.3m
Alarm	Depth, Voltage
Depth Uint	m, ft, fa
SD Card	Storage and replay function, software update
Interface
Input data	IEC61162-1(NMEA0183)RMC, GLL
Output data	IEC61162-1(NMEA0183)DPT, DBT(After GLL and RMC Input)
Serial port to print	Suitable for printer DPU-414
Environmental
Operating temperature	-10℃~+40℃ Compliance with IEC60945 standard
Working humidity	10~90%
